Brand Name : Tisco
Model Number : Stainless Steel Plate
Certification : ISO
Place of Origin : Made In China
MOQ : 1 Ton
Price : Negotiable
Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability : 5000 Ton/Tons per Month
Delivery Time : 10-15 days after deposit
Packaging Details : Standard seaworthy export packing or as customer demands
Length : 3000-6000mm or as required
Width : 1240-2000mm or as required
Standard : JIS, ASTM, DIN, EN
Thickness : 3~14mm
Surface : BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Technique : Hot Rolled
Edge : Mill Edge or Slit Edge
Stainless Steel Plate 0.7mm BA Surface 304 430 201 316 316L Stainless Steel Sheet
The corrosion resistance of stainless steel plate mainly depends on its alloy composition (chromium,
nickel, titanium, silicon, aluminum, manganese, etc.) and internal organizational structure, the main
role is chromium element. Chromium has high chemical stability, can form a passivation film on the
surface of steel, so that the metal is isolated from the outside world, protect the steel plate from
oxidation, increase the corrosion resistance of the steel plate. After the passivation film is destroyed,
the corrosion resistance decreases.
AISI TYPE | C | Si | Mn | P | S | Ni | Cr. | Mo |
Austentic St. Steel | ||||||||
303 | 0.15 | 1.00 | 2.00 | 0.20 | 0.15 | 8.00 10.00 | 17.00 19.00 | |
304 | 0.06 | 1.00 | 20.00 | 0.045 | 0.030 | 8.00 10.00 | 18.00 20.00 | |
304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 11 | 18 | |
316 | 0.07 | 1.00 | 2.00 | 0.045 | 0.030 | 11 | 18 | 2.00 3.00 |
318L | 0.03 | 1.00 | 2.00 | 0.045 | 0.030 | 13 | 18 | 2.00 3.00 |
317 | 0.06 | 1.00 | 2.00 | 0.045 | 0.030 | 13 | 18 | 3.00 4.00 |
317L | 0.03 | 0.50 | 1.75 | 0.045 | 0.030 | 14 | 19 | 3.00 3.00 |
321 | 0.08 | 1.00 | 2.00 | 0.45 | 0.030 | 11 | 18 | |
325 | 0.25 | 2.00 | 0.60 | 0.045 | 0.030 | 19.00 23.00 | 10 | |
347 | 0.08 | 1.00 | 2.00 | 0.045 | 0.030 | 11 | 15 | |
Heat Resisting Steel | ||||||||
309 | 0.20 | 1.00 | 2.00 | 0.045 | 0.030 | 12.00 15.00 | 22.00 24.00 | |
310 | 0.25 | 1.50 | 2.00 | 0.045 | 0.030 | 19.00 22.00 | 24.00 26.00 | |
Ferritic St. Steel | ||||||||
405 | 0.08as | 1.00 | 1.00 | 0.045 | 0.030 | - | 11.50 14.50 | |
Martensetic St. Steel | ||||||||
410 | 0.12 | 1.00 | 1.00 | 0.040 | 0.030 | - | 12.5 | |
416A | 0.12 | 1.00 | 1.25 | 0.060 | 0.15 | - | 12.5 | |
420 | 0.23 | 1.00 | 1.00 | 0.040 | 0.030 | - | 12.5 | |
431 | 0.20 | 1.00 | 1.00 | 0.040 | 0.030 | 2.00 | 16.00 |
Product Name | ASTM ASME SA 240 300 Series Stainless Steel Sheets For Structure Building |
Width | 600mm~2500mm |
Thickness | 0.1-100mm |
Length | As required |
Surface | BA/2B/NO.1/NO.4/8K/HL |
Stock or not | enough stock |
Quality test | Mill Test Certificate is supplied with shipment, Third Part Inspection is acceptable |
Payment terms | L/C, T/T (30%DEPOSIT) |
Sample | Provided Freely |
Container Size | 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High) |
Delivery time | Within 7-10 Working Days |
![]() |

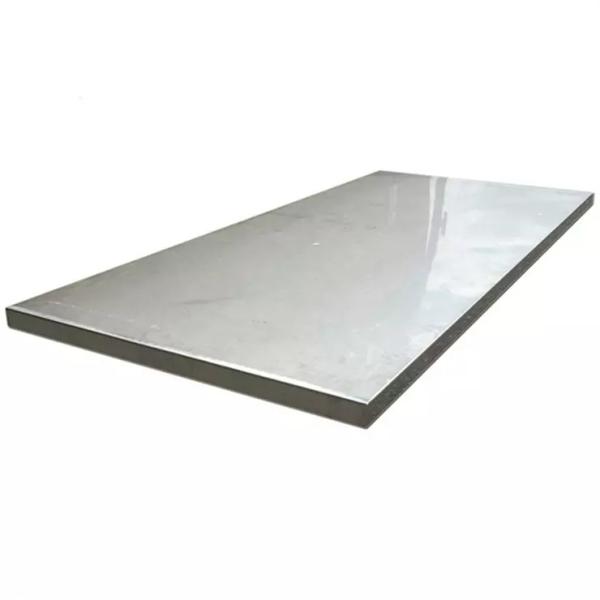

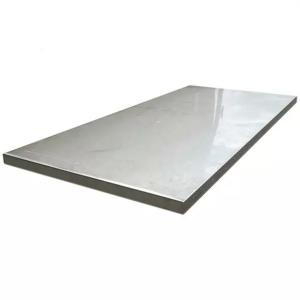

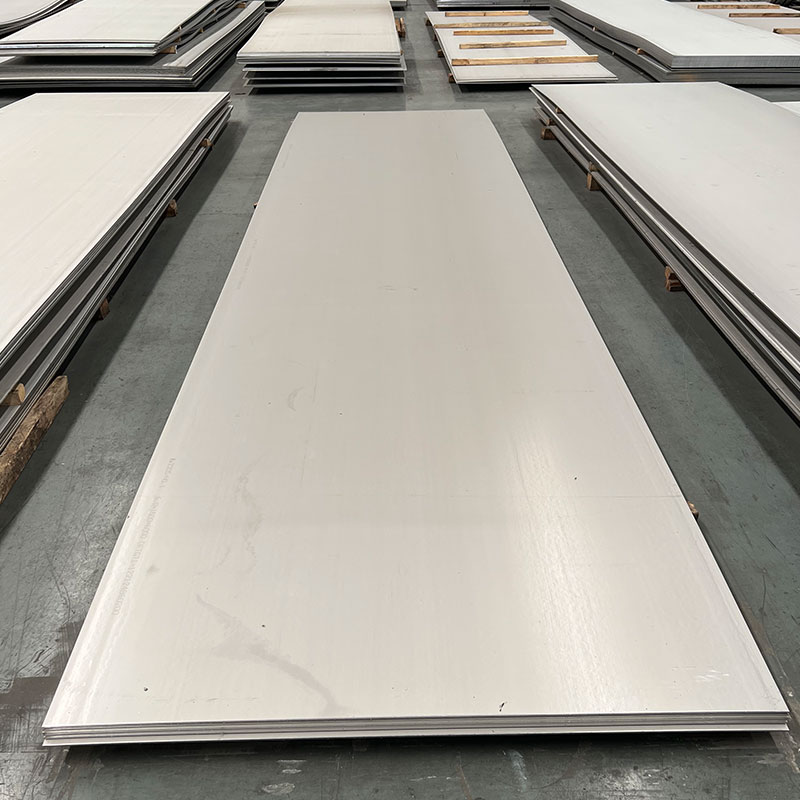

0.7mm BA Surface Stainless Steel Plate 304 430 201 316 316L Sheet Images |
